Tall Timber
Single Switch
A Small Footswitch in a Variety of Configurations
Single Switch Features

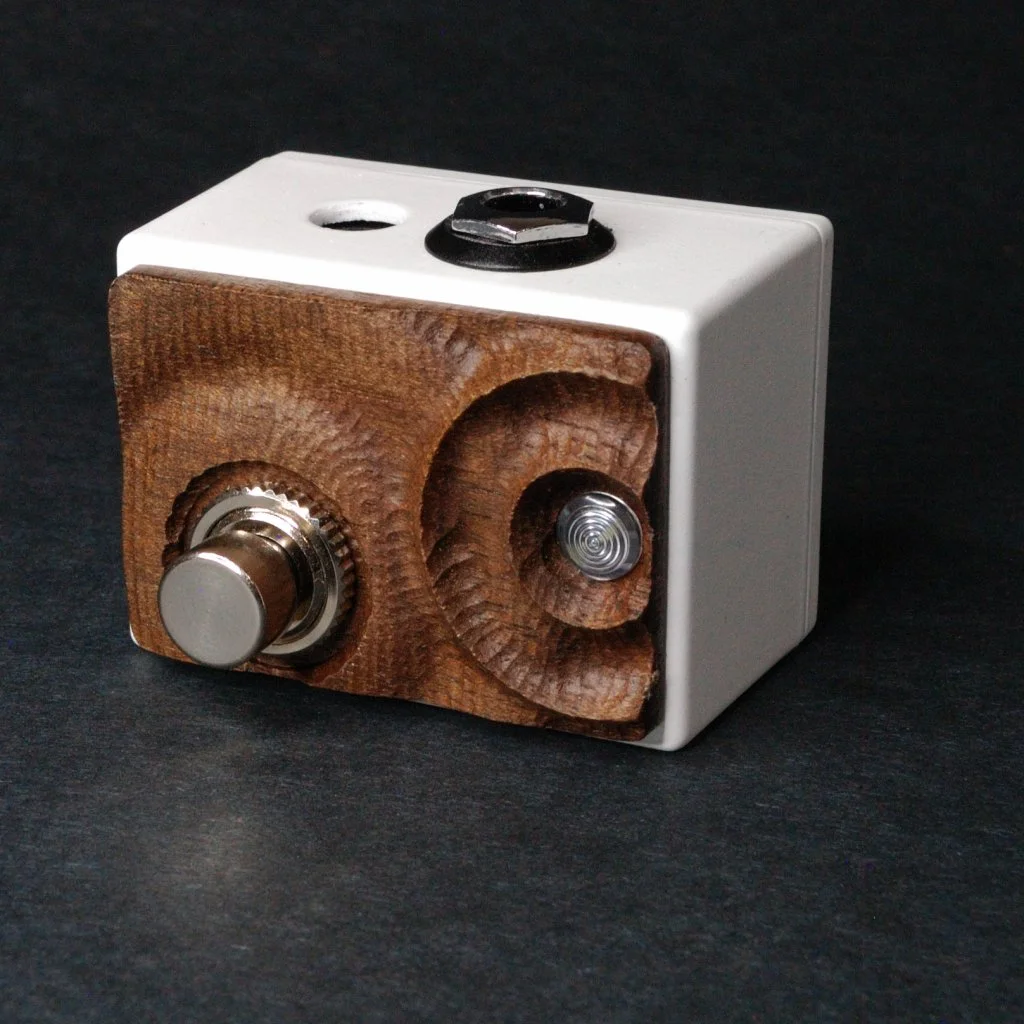

Elegant Carved Solid Walnut Top
Powder-Coated Aluminum Enclosure
See Selection Table for Generally Available Configurations
Contact us for custom orders

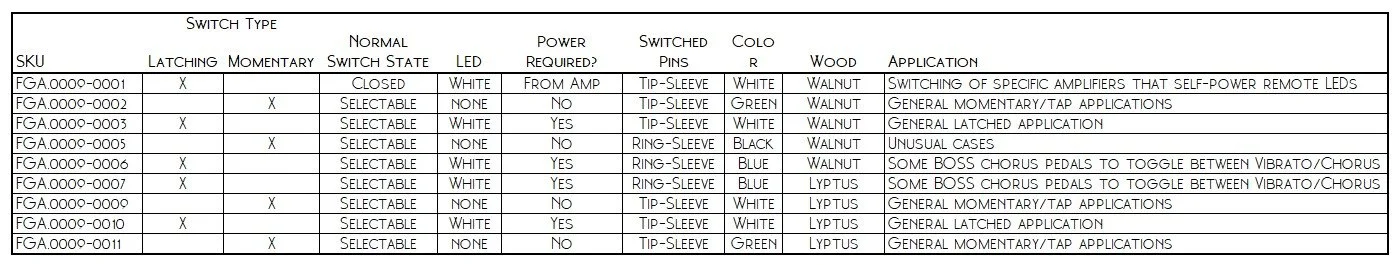

Generally Available Configurations. Custom Configurations available by request.
Specifications
-

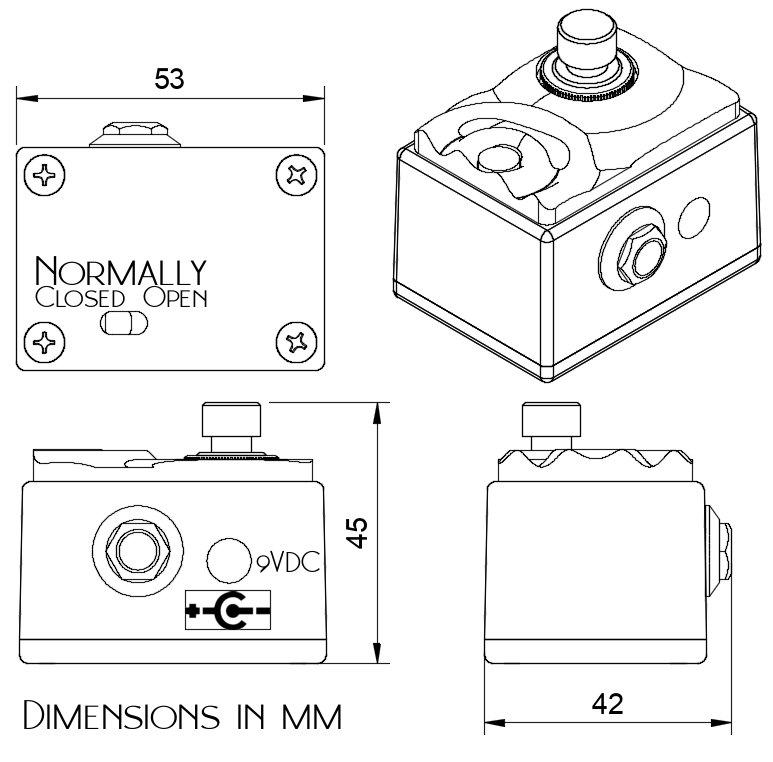

Dimensions
53 × 42 × 45 mm
(2.1 × 1.7 x 1.8 in)
-
Materials
Enclosure: Powder-coated machined cast aluminum
Top: Carved Solid Hardwood
-
What's Included
Tall Timber Single Switch
Optional Rubber Feet
Protective Muslin Bag
Product Box
-
Power Requirements
SKUs with momentary switches do not require power.
SKUs with LEDs consume <10mA at 9VDC
DC connector is BOSS-standard barrel jack with 5.5mm OD and 2.1mm ID, center-negative.
Power supplies available separately.
-
Vibrato/Chorus Switch Compatibility
Add the Ability to Toggle between Vibrato and Chorus to your Chorus pedal!
The following products are known to be compatible with the Vibrato/Chorus switch when connected to Output B with a TRS cable:
BOSS CH-1 Super Chorus
BOSS CE-5 Ensemble Chorus
BOSS CEB-3 Bass Chorus
Behringer UC200 Ultra Chorus
Assembled from Quality Components
Built by hand and machine in my shop in Portland, OR
